• Eductors are rated for optimum flow at 200 psi (14 bar) inlet pressure
• Works well with nozzles rated at 75 psi (5 bar) and 100 psi (7 bar)
• Ball check valve prevents back flow into foam concentrate

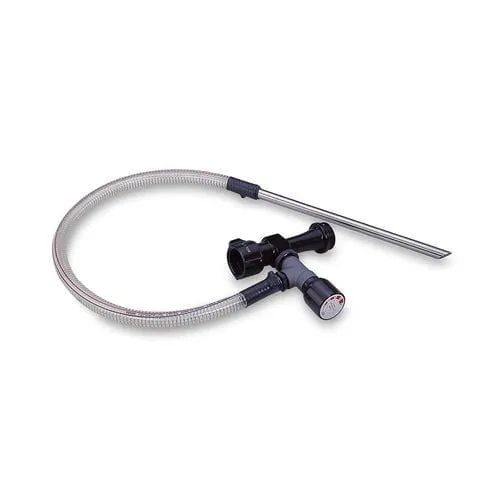

• Supplied with clear foam 6-1/2' pickup hose and 15" stainless steel tube
• Pickup rate may be set at any position between 0% to 6% with detentes at 1/4, 1/2, 1, 3, and 6%

Specifications

• Model: 5203-95
• Flow Rate:   95 GPM (360 LPM)

• Operating Pressure:  75 psi (5 bar), 100 psi (7 bar), 200 psi (14 bar)
• Inlet:  1-1/2" (38 mm) NH

• Outlet:  1-1/2" (38 mm) NH
• Foam Proportioning: 1/4%, 1/2%, 1%, 3%, 6%
• Material: Alloy
• Length: 8.6" (218 mm)
• Weight: 3.5 lbs (4.2 kg)
